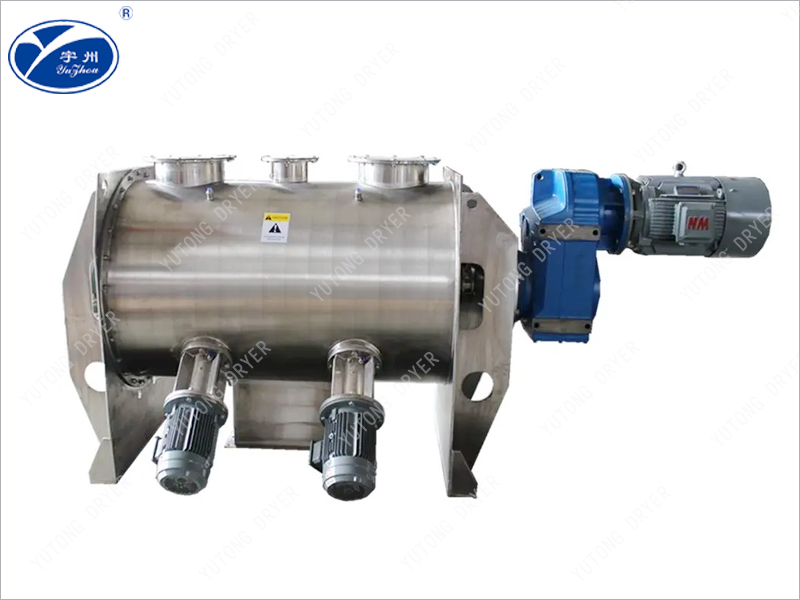

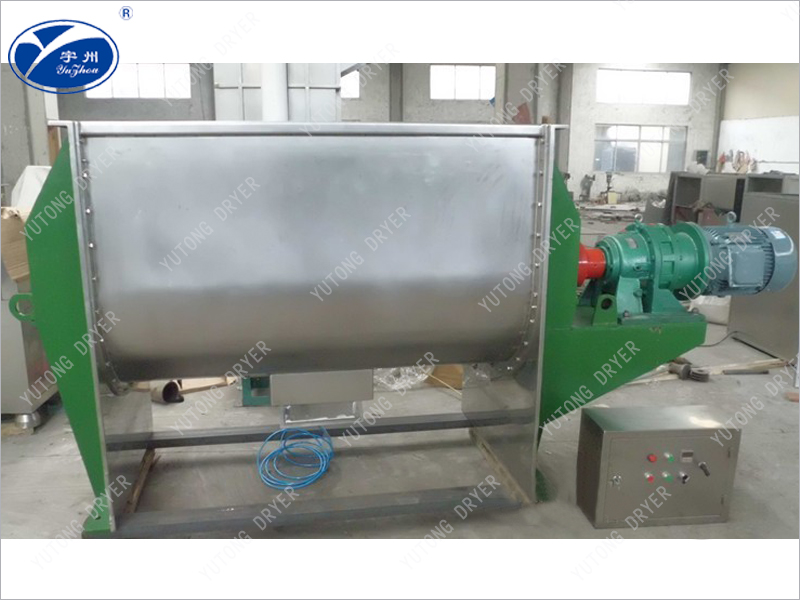

This model consists of four parts: transmission mechanism, horizontal cylinder, plow blade, and flying blade; The material undergoes circumferential turbulence along the cylinder wall under the action of the plow blade. When the material flows through the flying blade, it is scattered by the high-speed rotating flying blade, thus achieving uniform mixing in a short period of time.
The mixing time is short, and it has good adaptability to the mixing of materials with large particle size and density difference.
Structure characteristics are especially suitable for liquid mixing and wetting particles, the particle size is between 0.3-3mm.
Applied in industries such as chemical, pharmaceutical, pesticide, veterinary medicine, food, feed, feed additives, plastics, etc. for solid solid (powder to powder) and solid-liquid (adding a small amount of liquid to powder) mixing, as well as composite processes such as wet granulation and drying; Especially suitable for mixing viscous or gelatinous additives.
